Scope of Application

This product is intended for internal fixation of maxillofacial fractures.

Product Features

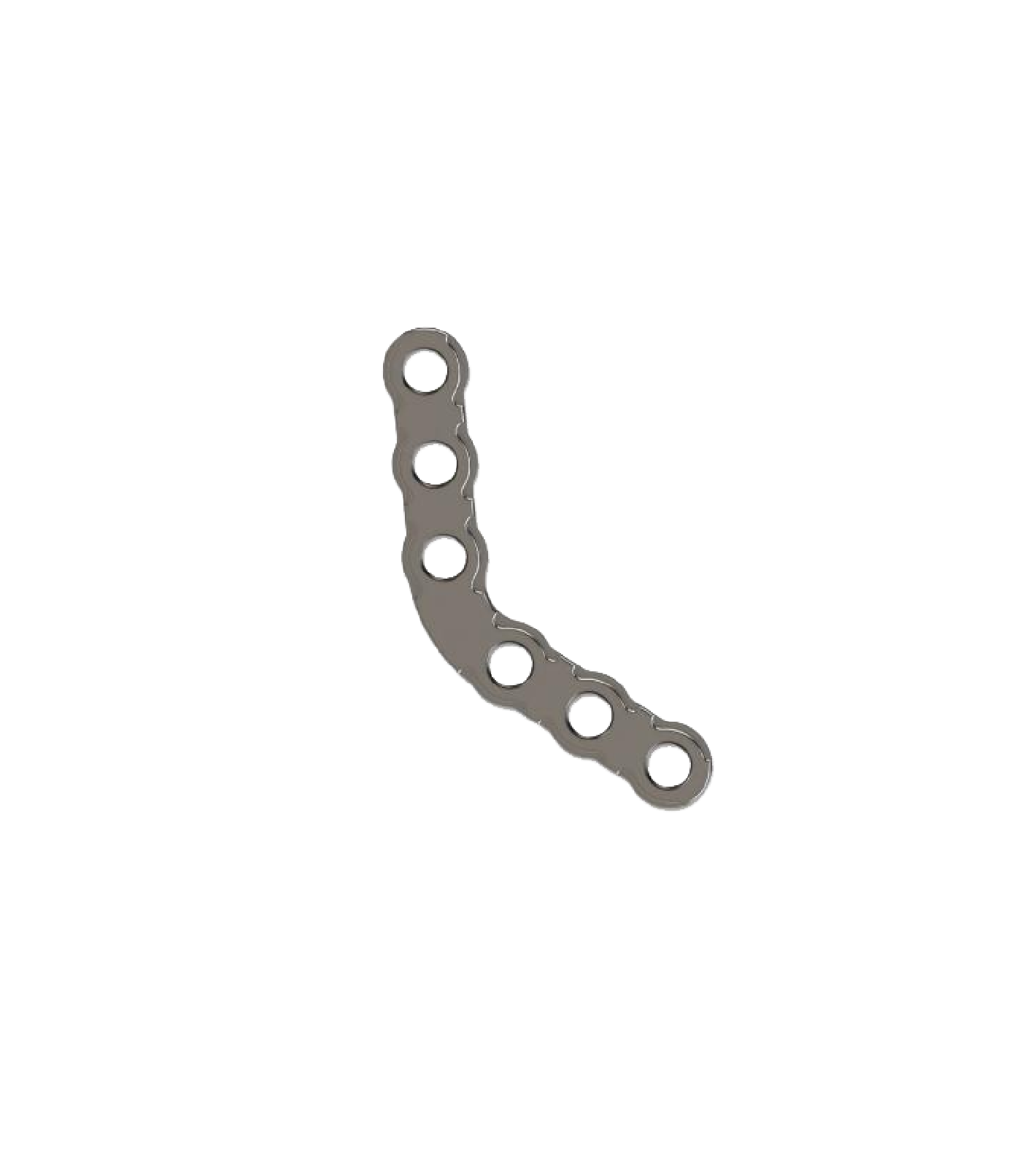

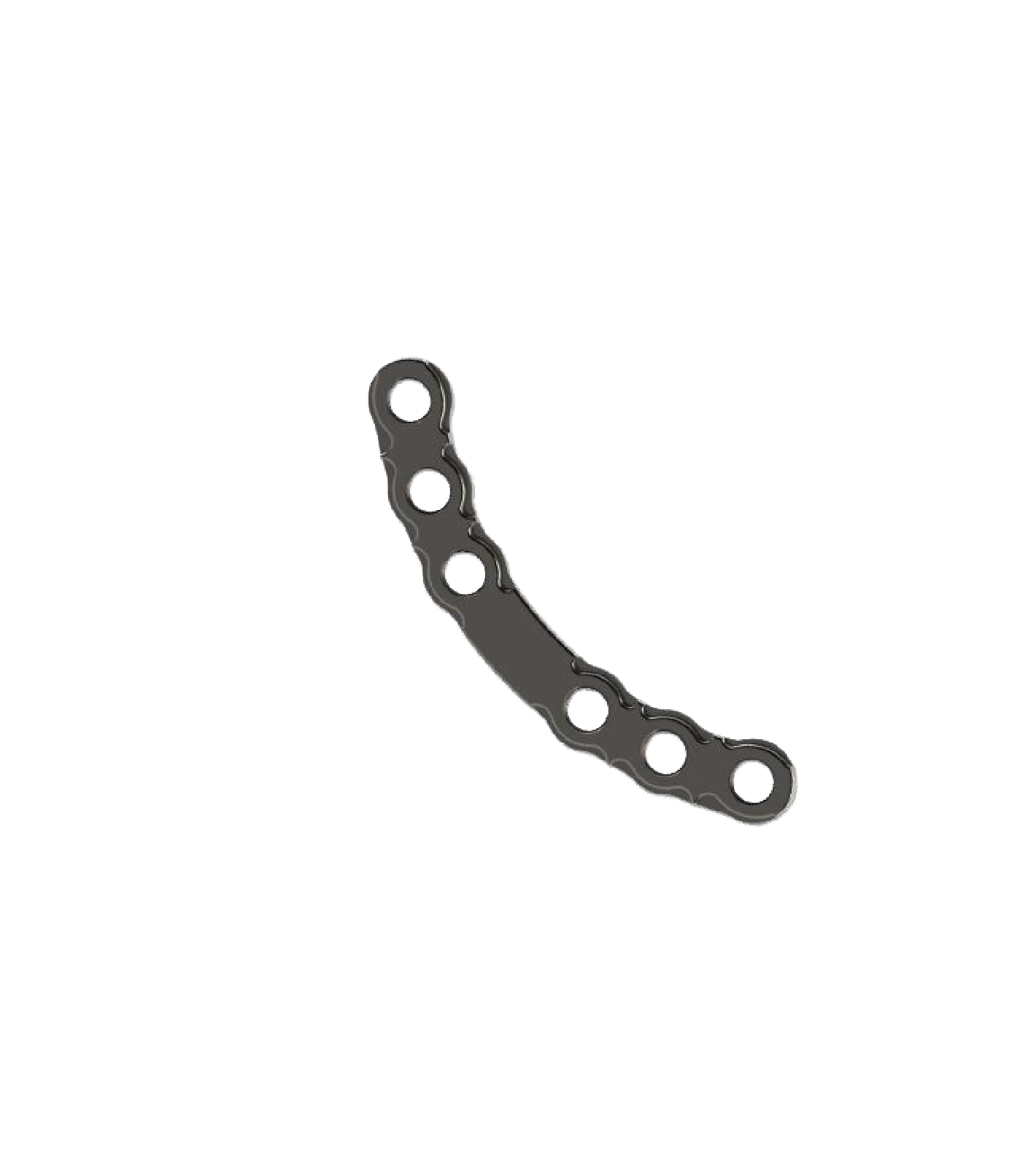

★ The maxillary bone fixation plates in this system are manufactured from TA4G material with excellent biocompatibility, offering superior plasticity for easy pre-bending and adjustment by clinicians. The surface oxidation process significantly enhances material hardness and wear resistance.

★ The fixation holes and screw heads in this system feature threaded locking functionality, offering clinicians both locking and non-locking fixation options. The locking fixation provides greater stability, while the non-locking fixation allows for superior adjustability.

★ Plates and screws of different models and specifications can be freely combined, enabling clinicians to select the optimal configuration for each case.

Product Advantages

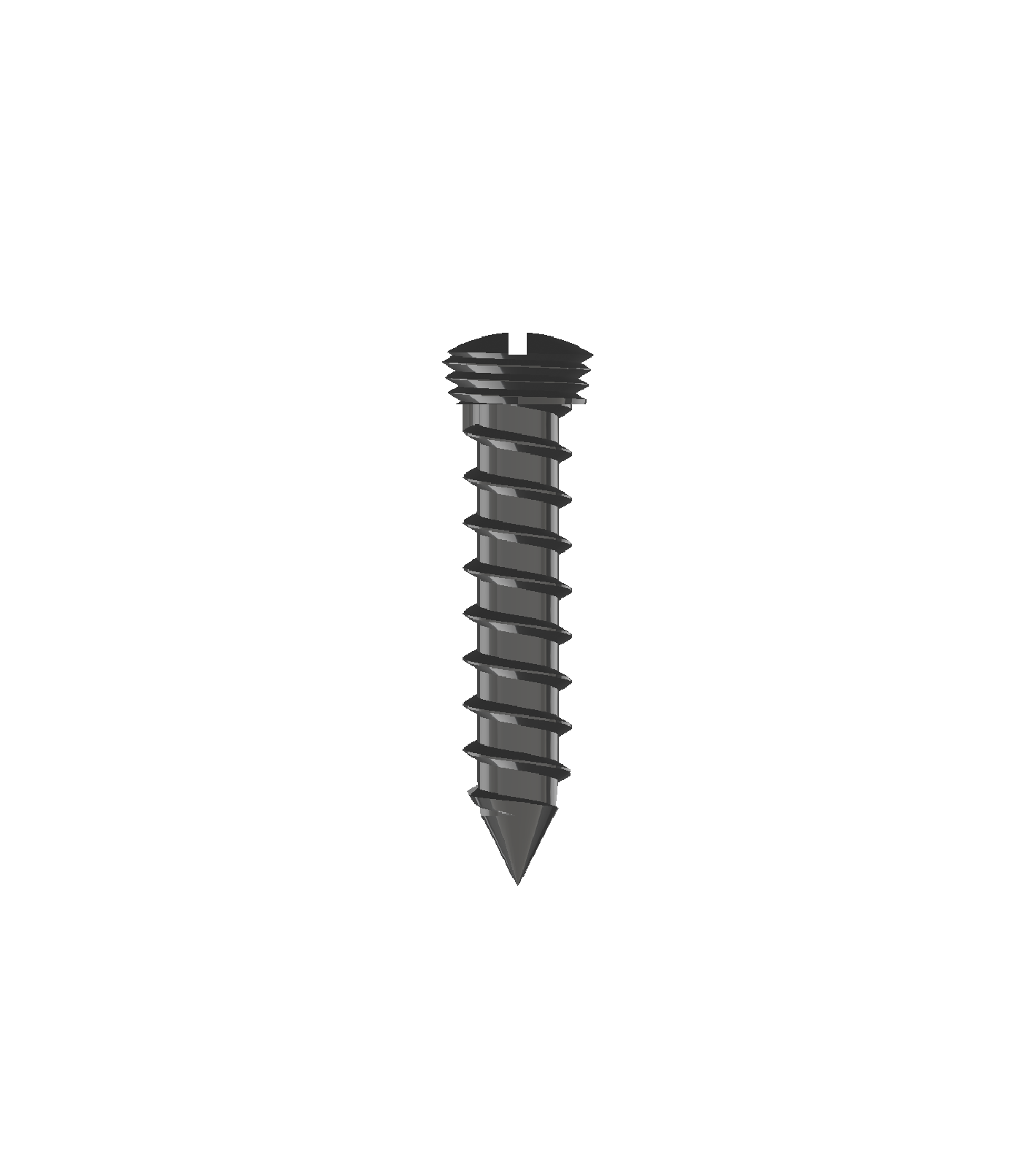

• The screws in this system are made of TC20 material, offering high strength. The surface oxidation process enhances surface hardness and wear resistance.

• Bone screws are available in multiple diameters including 2.0, 2.4, 2.7, and 2.9 mm to accommodate diverse patient needs. The self-gripping cap design effectively prevents screw loosening and dislodgement.

• The unique cross-shaped design of the bone screw allows the insertion tool to form a 15° angle with the screw cap, providing surgeons with greater operational space.
