Scope of Application

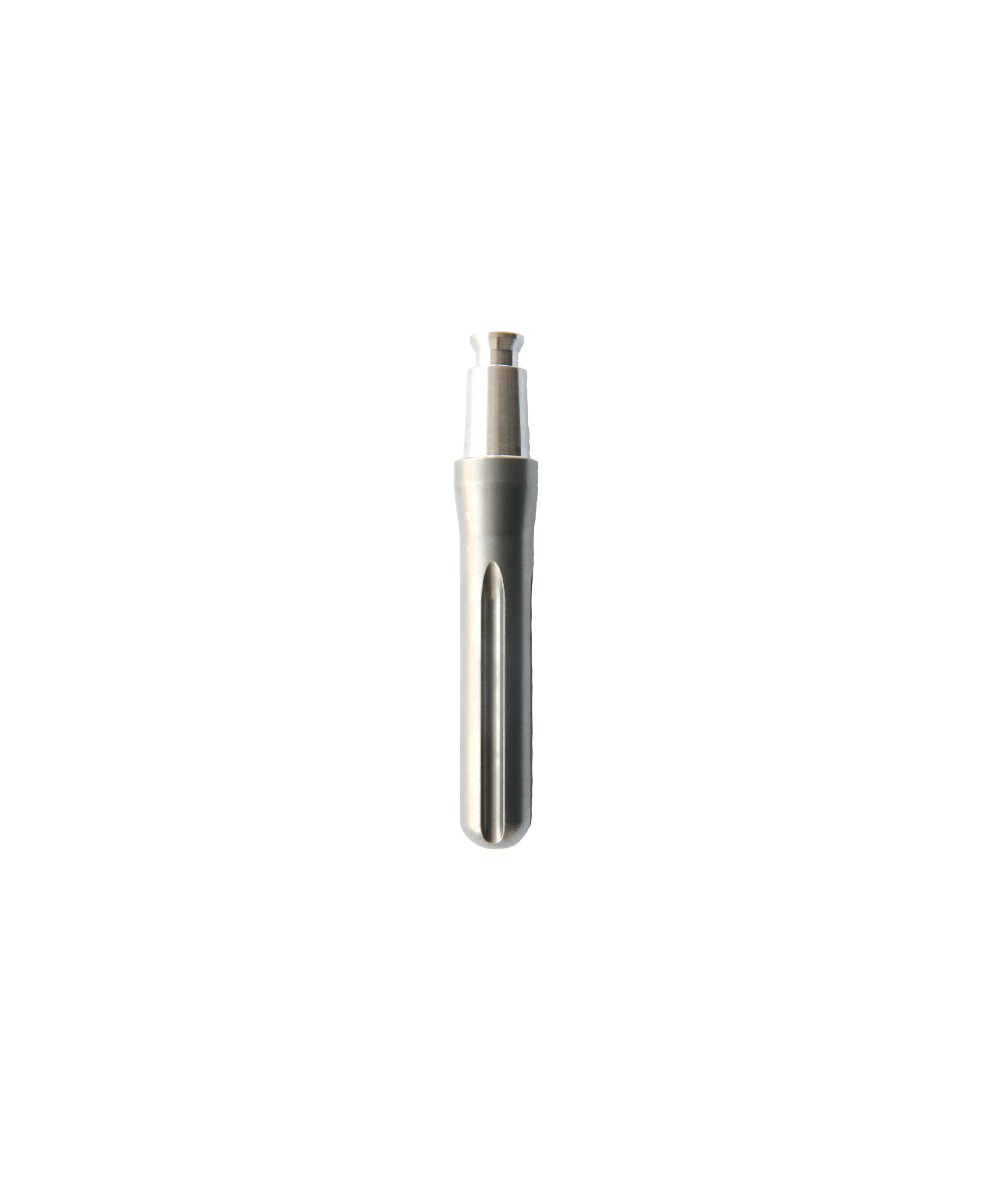

Compatible with components of the same system from the enterprise, it is indicated for total knee arthroplasty and revision procedures; the intramedullary pins are available in cemented and cementless types, while all other components are intended for use as cemented prostheses.

Product Features

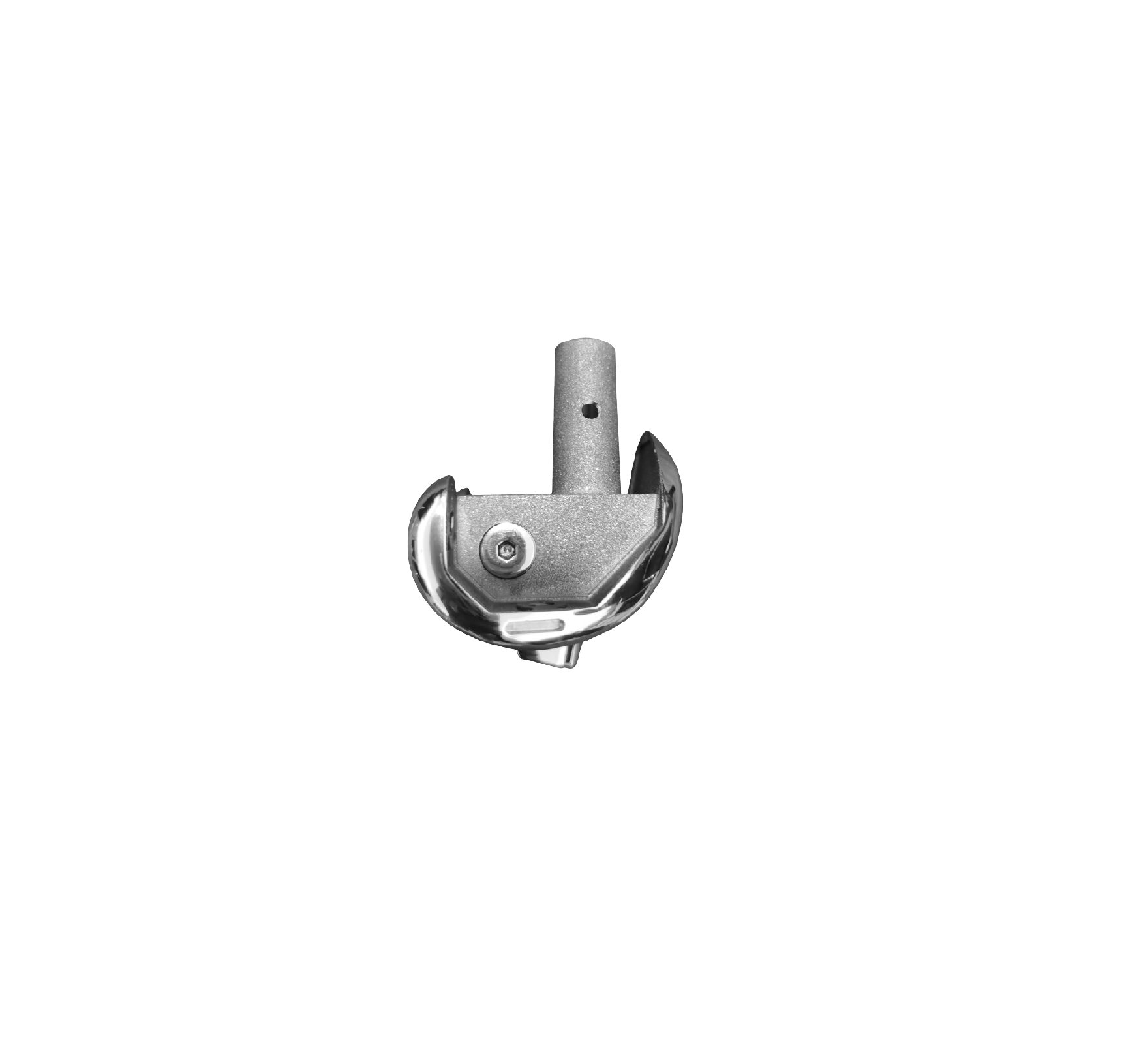

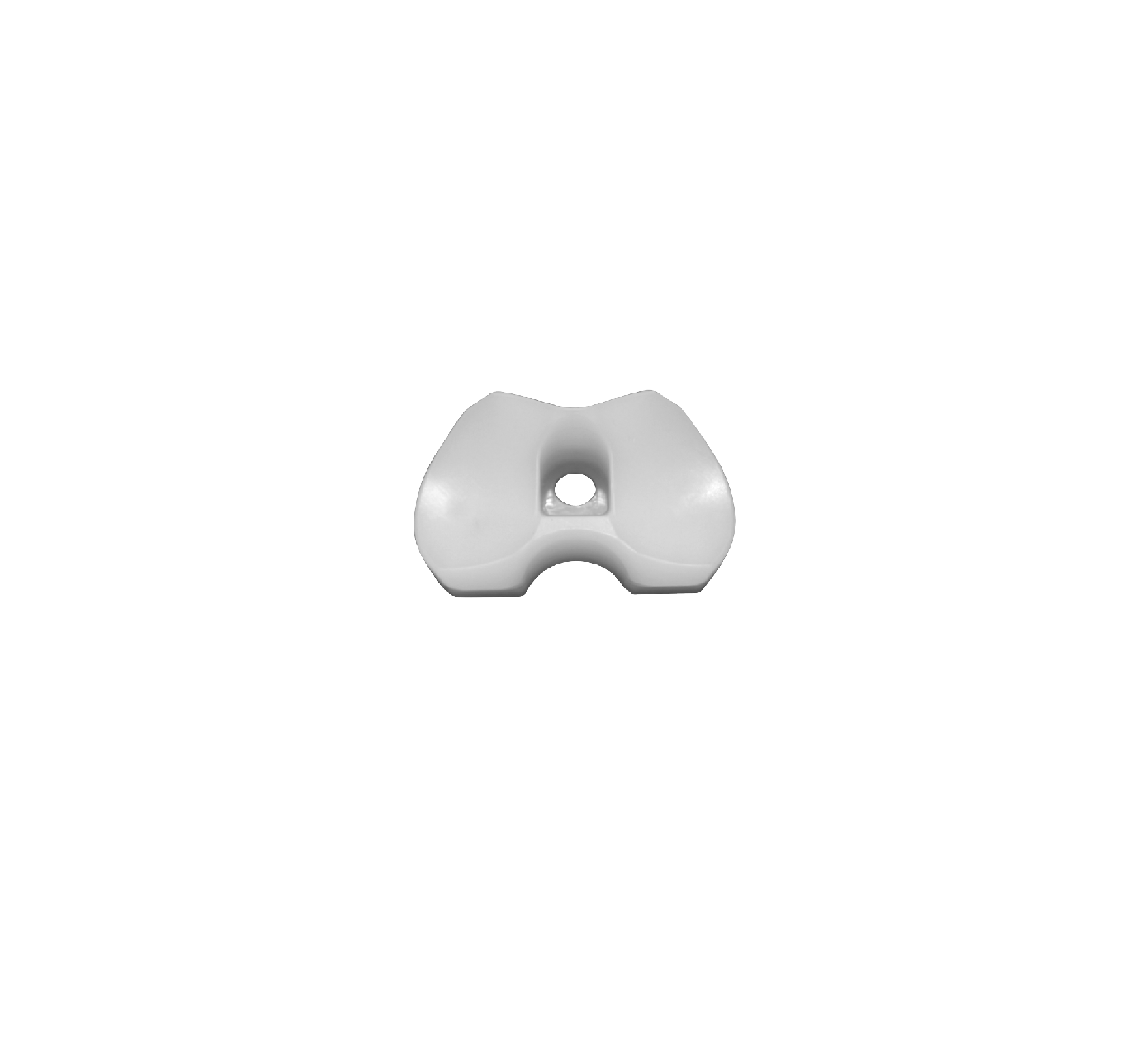

★ Modular hinge mechanism: Load is borne by the tibial tray, reducing wear on the hinge polyethylene.

★ Rotating platform design: Offsets torsional load exerted on soft tissues by the bone cement surface during prosthesis movement via rotation.

★ Maximum 40 mm "jump height": Prevents subluxation caused by mid-flexion instability after knee surgery.

★ Optimized stress transfer design: Ensures uniform force distribution and long-term stable prosthesis performance.

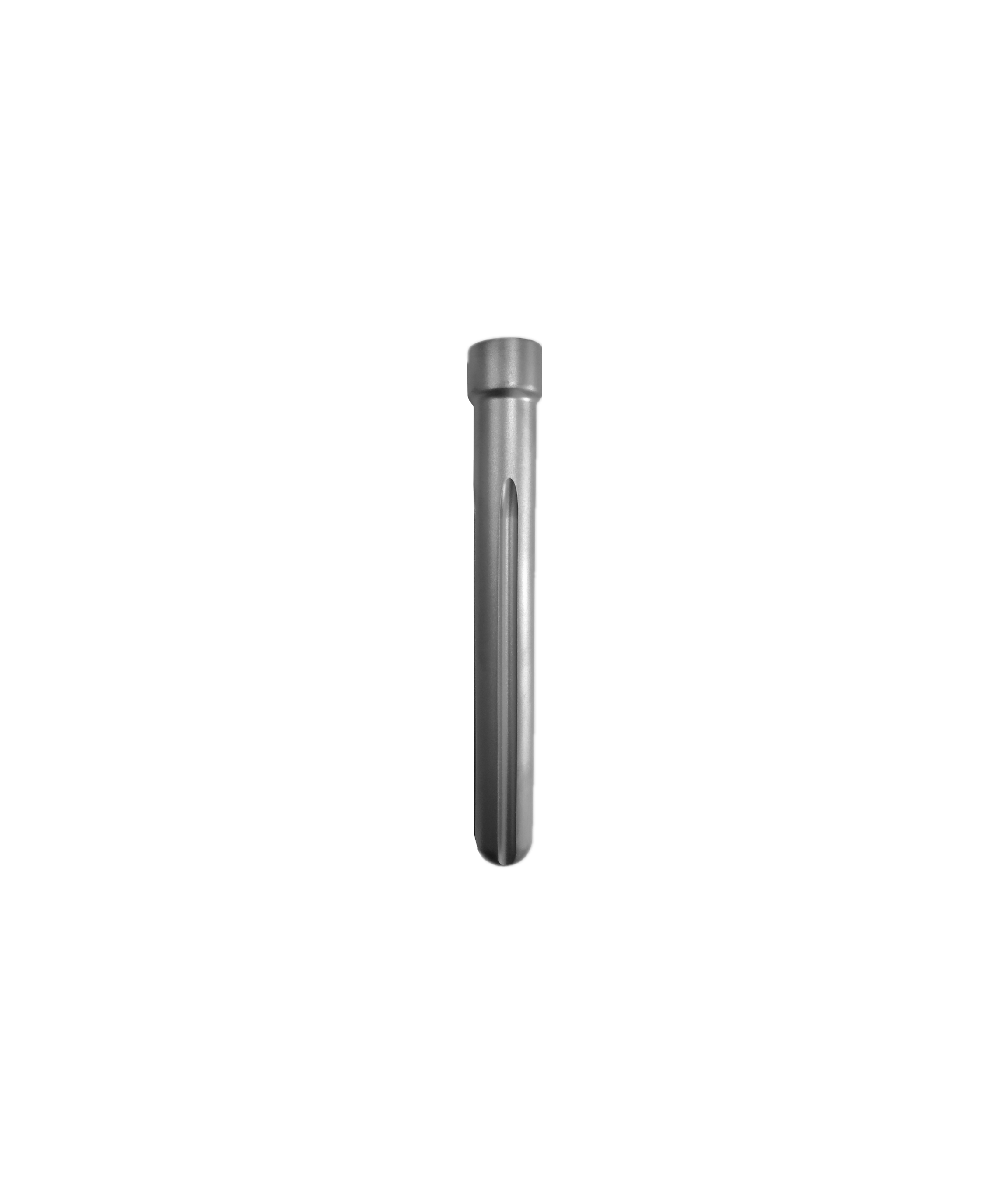

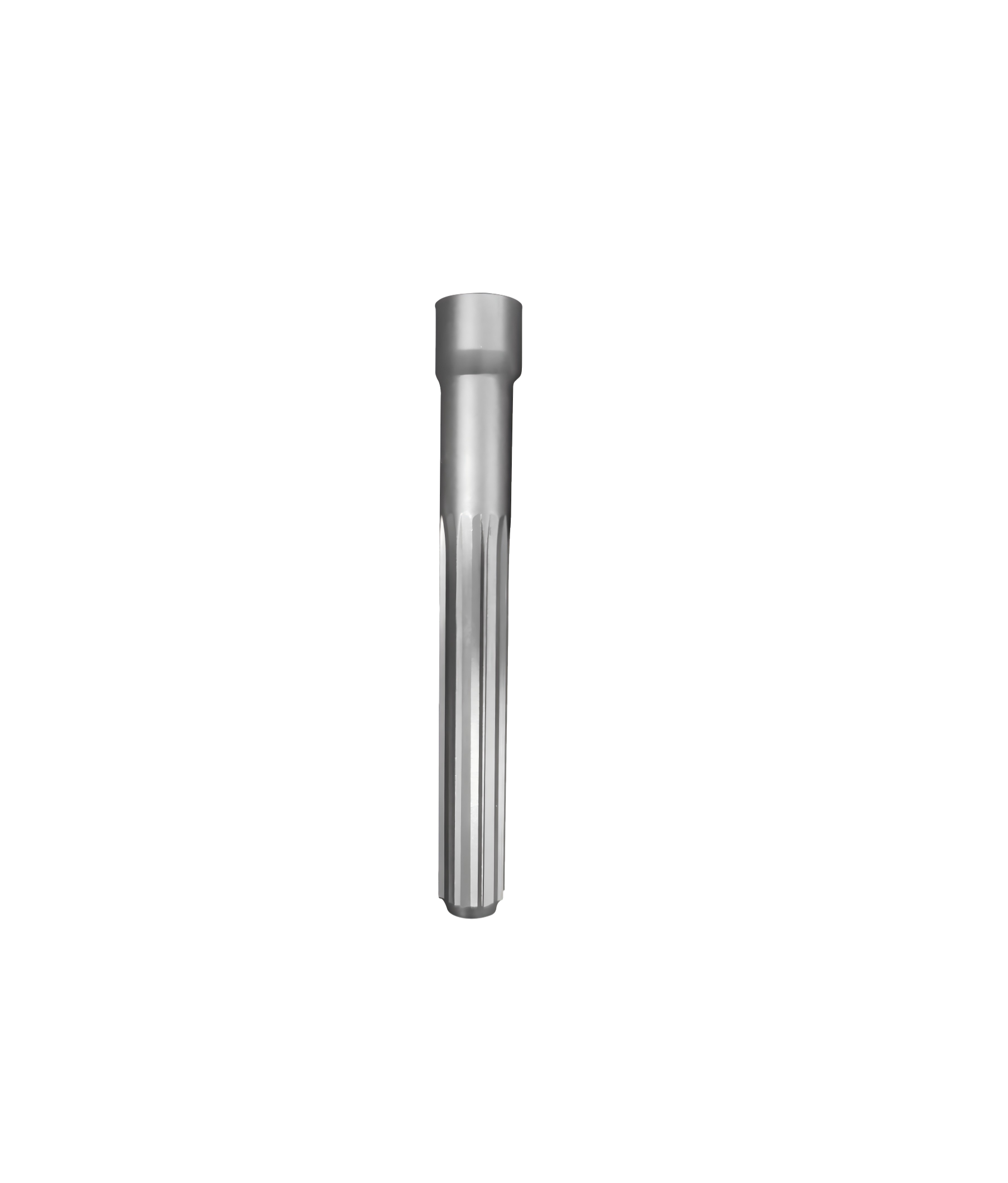

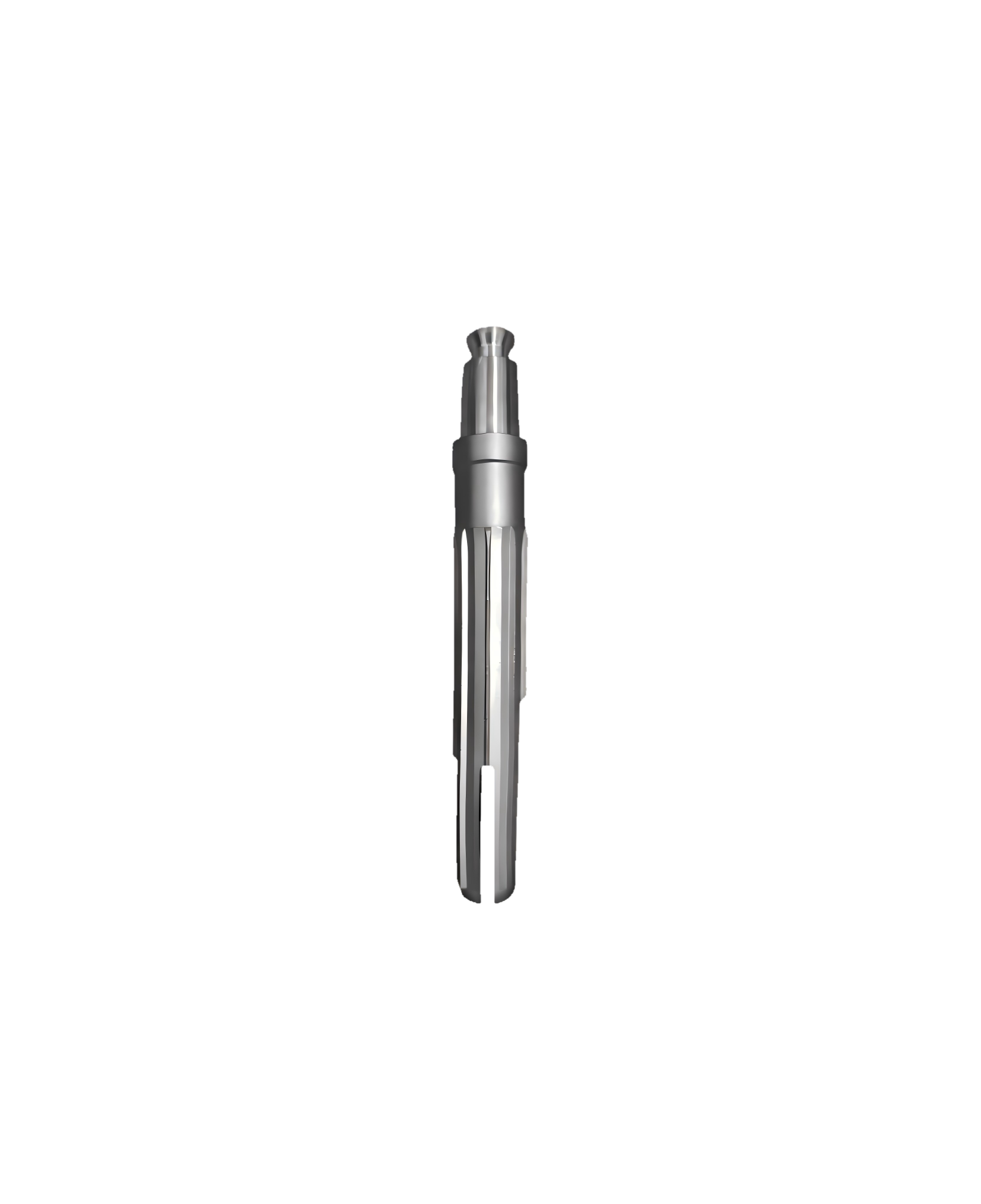

★ Cross-slot decompression design at extension stem tip: Reduces intramedullary extension stem stiffness and lowers the incidence of stem tip pain.

Product Advantages

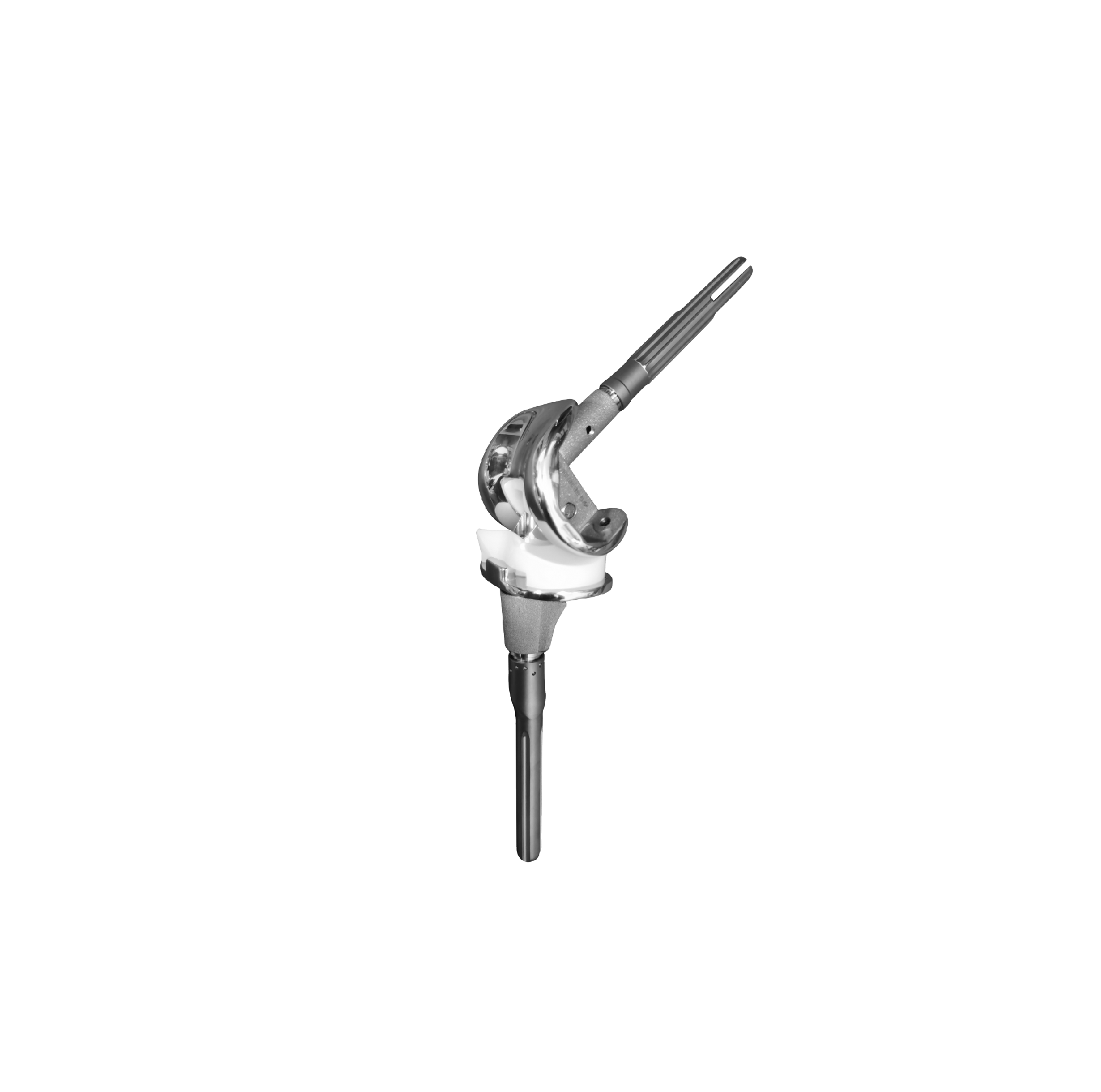

• Rotating hinge knee joint prosthesis: Designed based on the fixed-axis theory and following the principles of low wear, rotatability and self-stability, it effectively ensures the flexion, extension and rotation functions of the knee joint.

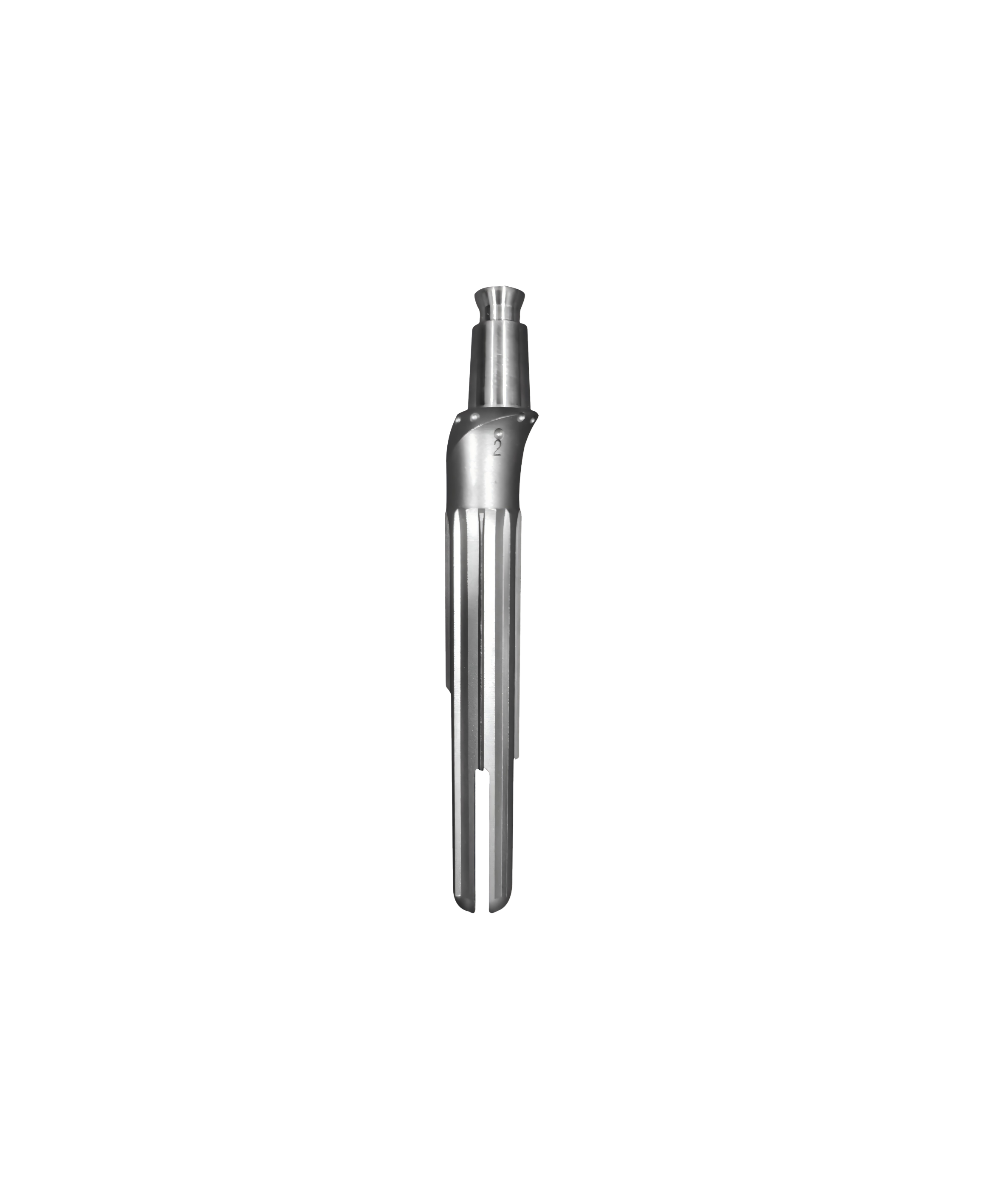

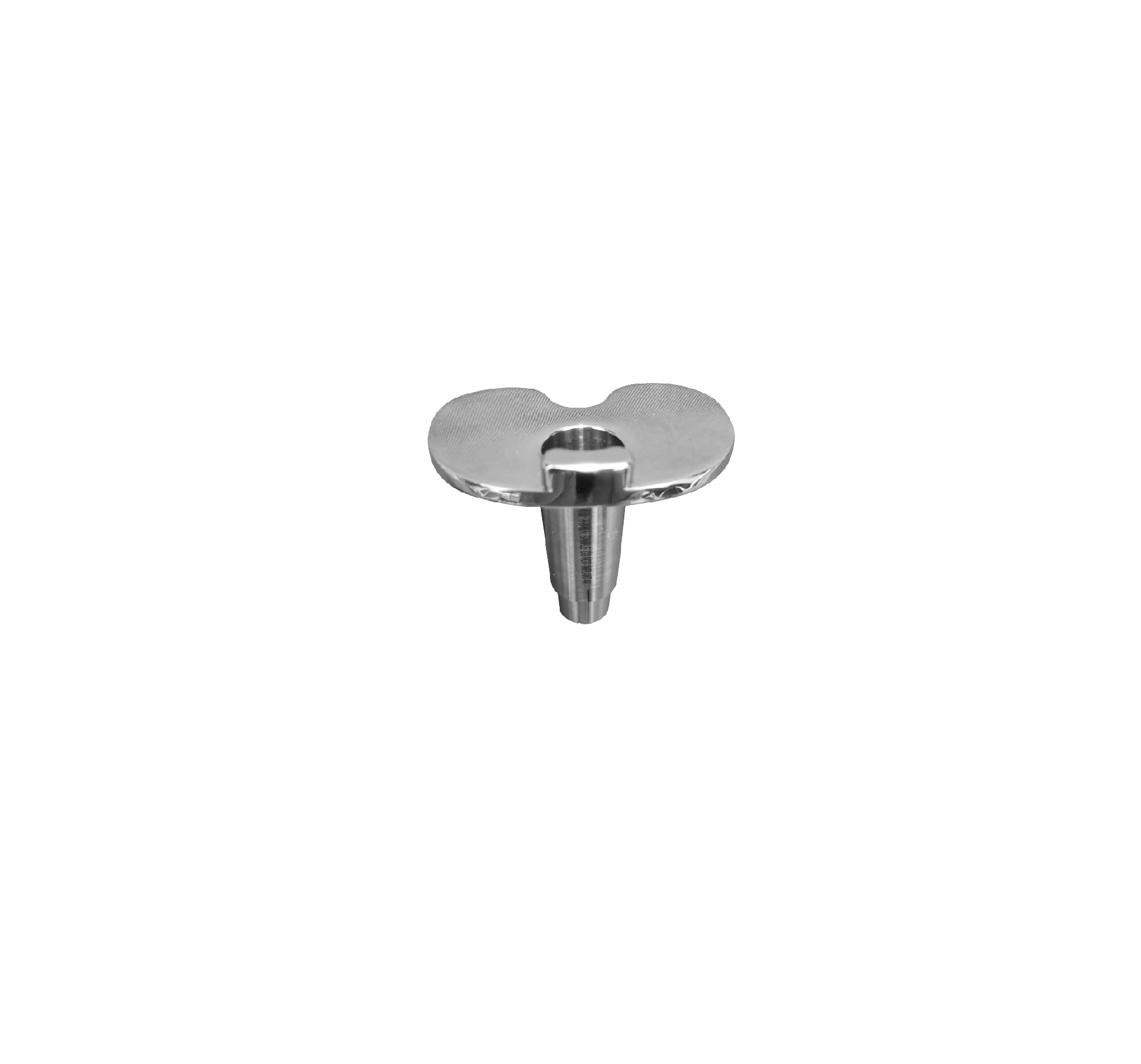

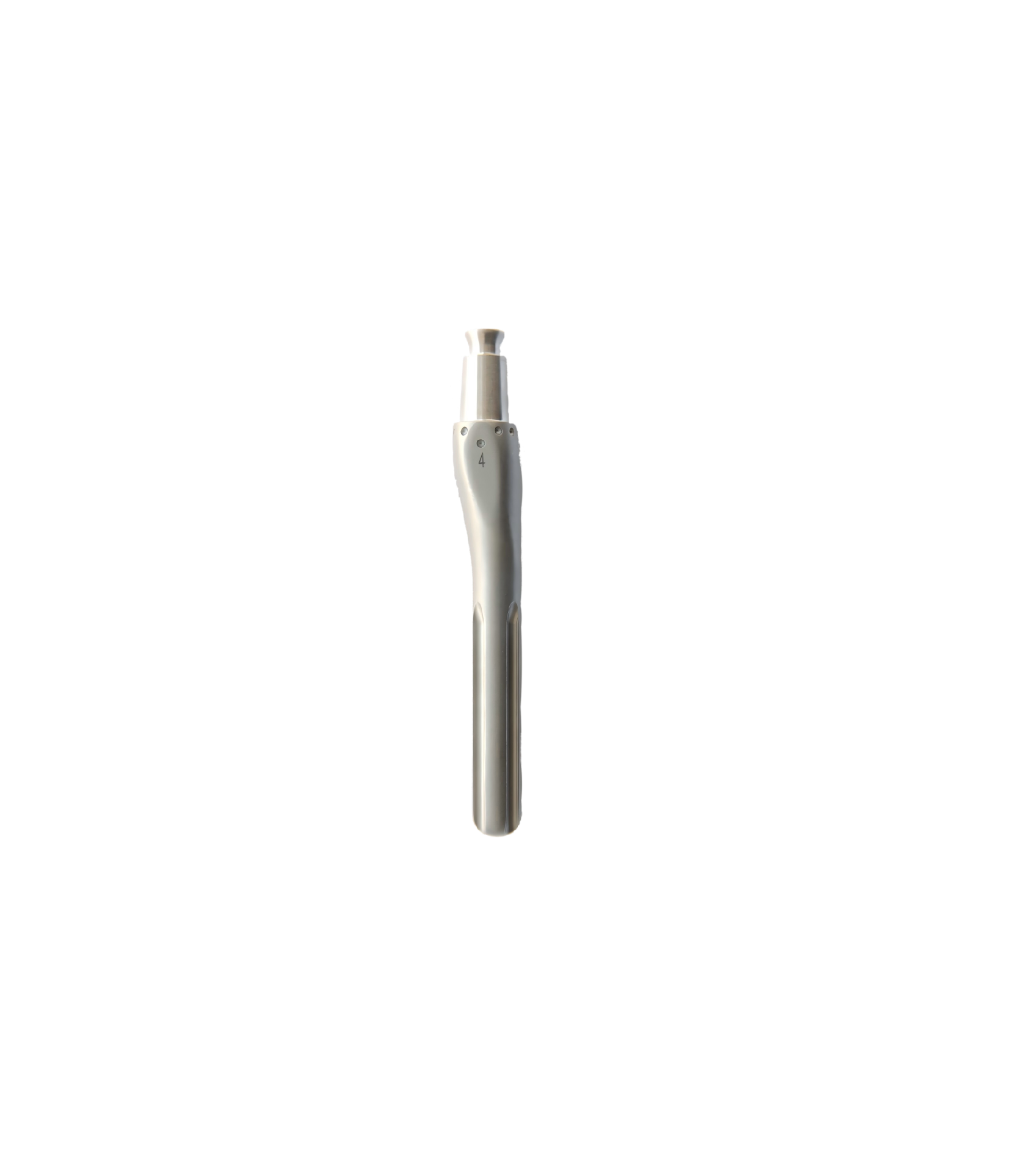

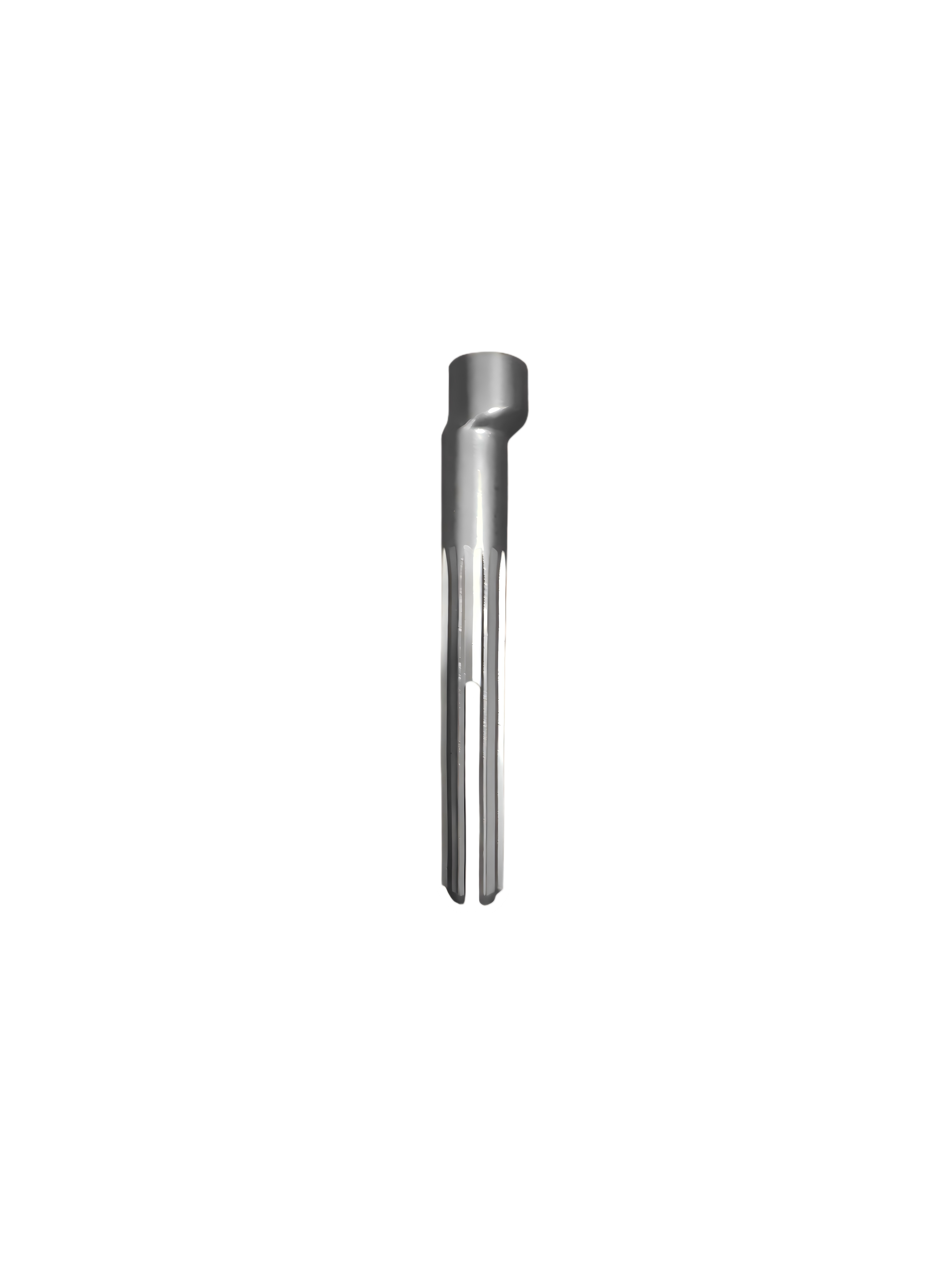

• Optimized tibial post structure: The tibial tray can be connected with an eccentric extension stem to position the tibial prosthesis, thus achieving optimal adaptation to the medullary cavity morphology.
